SALICE BASE PLATES - 9mm

CODE: BAR3R99


Price: $2.47

In stock

Our quantity discounts:

Quantity  50+   100+   300+
Price  $1.38   $0.92   $0.86

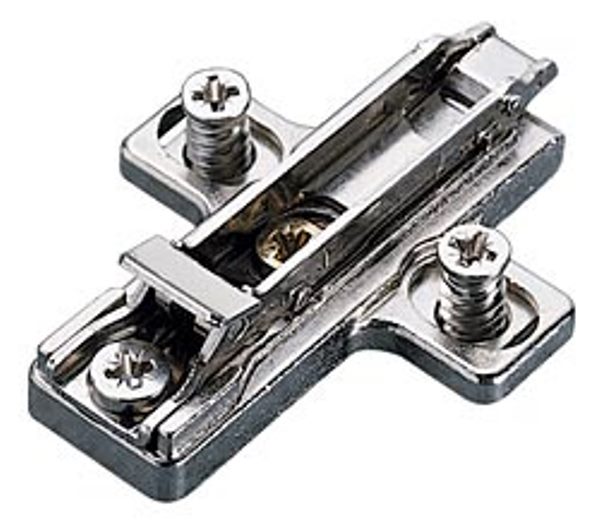

Salice DOMI Snap-On Automatic Mounting Plate, 9mm

Salice offers one of the most versatile concealed hinge systems with height, depth and side adjustment. DOMI Snap-On Mounting Plates easily attach to hinges without any tools. Simply press the hinge into the Snap-on mechanism to install. DOMI plates also feature the AAR (Automatic Adjustment Response) Feature: a slight turn of the Frontal or Vertical Adjustment Cam quickly positions the hinge.

  • Screw-On: EuroScrews (Included), Can be unsrewed and replaced with a #6 wood screw.
  • Euro Mounting Plate for Hinge Series 100, 200, Logica, F, 400 and B
  • Thickness: 9mm (Overlay = Hinge Crank + Boring Distance - 3mm)
  • 2-Way Cam Adjustment in Mounting Plate (Depth & Height)
  • Height Adjustment: +/-2mm
  • Depth Adjustment: +2.8mm & -0.5mm
  • Hole Spacing: 32mm
  • Finish: Nickel-Plated
  • Use #2 PoziDrive Screwdriver for Screw Adjustment

***Hinges Sold Seperately***
