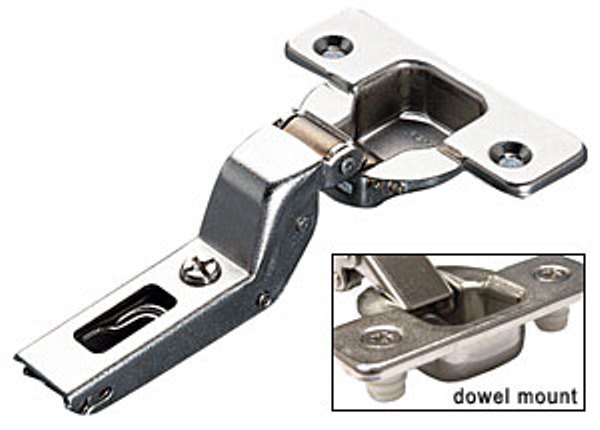

Salice Series 200 Knock-In - 110° 1/2 Overlay Concealed Hinge
Salice offers one of the most versatile concealed hinge systems with height, depth and side adjustment. Series 200 Hinges are compatible with the popular DOMI Snap-On Mounting Plates, allowing for easy installation and removal of doors. Hinges are Nickel Plated for long lasting corrosion and wear resistance.
- Knock-In: Hinges are doweled and installed with a Hinge Machine that presses the dowels into pre-drilled 8mm holes
- Compatible with All Traditional Series 200 Mounting Plates & All DOMI® Snap-On Mounting Plates
- Crank "A" (Overlay = 15mm + Boring Distance - Baseplate Thickness)
- 110° Opening Angle
- Self Closing
- Boring Pattern: 45mm
- Cup Diameter: 35mm
- Cup Depth: 11mm
- Boring Distance: 3mm to 6mm
- Finish: Nickel-Plated
- Please order appropriate baseplates (sold separately)
