SOSS 216 HINGES - DULL CHROME

CODE: SOSS216P26D


Price: $46.70

In stock

Our quantity discounts:

Quantity  5+
Price  $44.84

***SOLD INDIVIDUALLY***

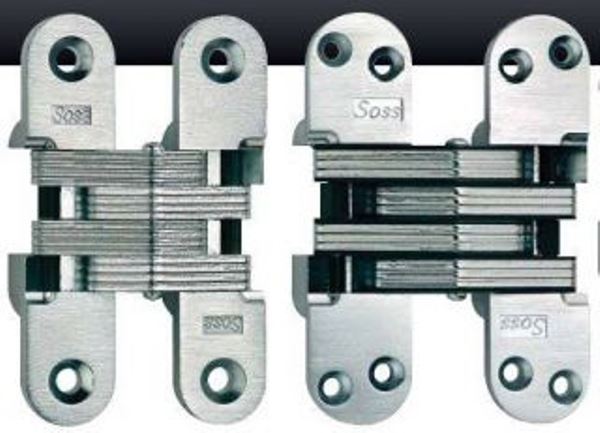

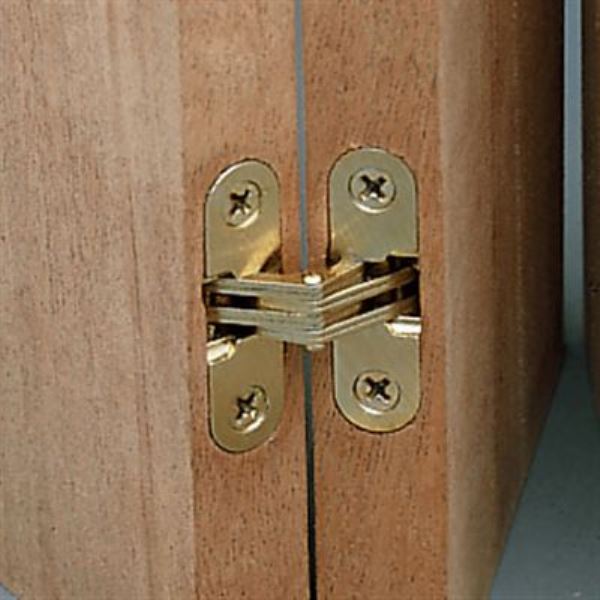

Elegant and durable, Soss invisible hinges are completely concealed when the cabinet door is closed. Available in Dull Chrome and Dull Brass finishes. Other colors  and models  by SOSS can be special ordered.

BRASS         CHROME             LENGTH     WIDTH    DEPTH    CLEARANCE    WOOD       SCREWS     HINGE GAP


SOSS218P4      SOSS218P26D                 4-5/8”             1-1/8”        1-19/32”          27/32”                 1-3/4”             10X1-1/2               3/64”

SOSS216P4      SOSS216P26D                 4-5/8”              1”              1-7/8”              23/32”                 1-3/8”             14X1-1/2               1/16”

SOSS212P4      SOSS212P26D                 3-3/4             3/4”           1-5/64”            17/32”                 1-1/8”             10X1-1/4               3/64”

SOSS208P4      SOSS208P26D                 2-3/4”             5/8”           29/32”              29/64”                 1”                      8X1-1/4               3/64”

SOSS204P4      SOSS204P26D                 2-3/8”             1/2”           23/32”              23/64"                 3/4”                   7X1-1/4               1/16”

SOSS101P4*                                              1-11/16”         3/8”           31/64”              19/64”                 1/2”                   5X3/4”                 1/32”

* Non-load bearing

Templates are carried for the 204 and higher number Soss hinge.  Templates require a bushing with an O.D. of 3/4” and maximum distance past base of 9/16”.  Porter-Cable Guide 42024 and 42237 (lock nut) meet these requirements.  Additionally, a 1/2” inch diameter straight plunge cut (like 1073 or 1055 or 1025, 1026) is used for all hinge installations.
