HETTICH 1260 SERIES DOOR Hardware and Accessories

Bi-Folding door track and hardware sets for folding doors up to 125 lbs. Hardware will accept full size jamb doors. Adaptable to residential, institutional and industrial applications where changing requirements demand alteration of room shape and size and where movable partitioning is required without altering the existing structure or where excessive opening size dictates use.
Mounting: Top
Adjustment: 3/4"
Door Thickness: 1"
Headroom: 1-5/8" min - 2-3/8" max

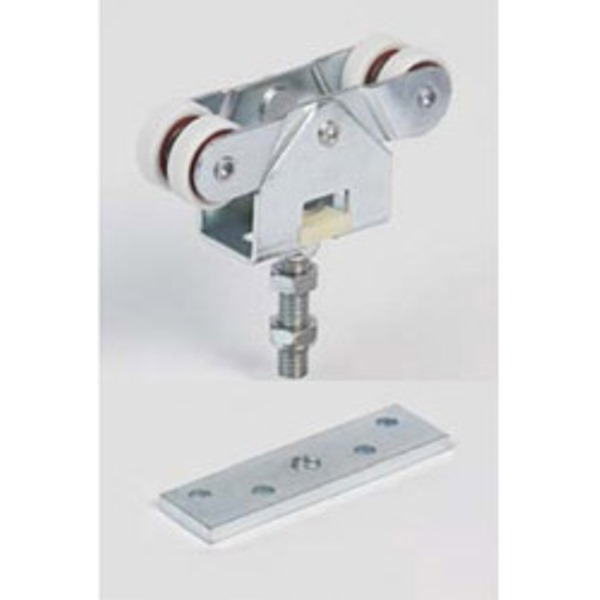

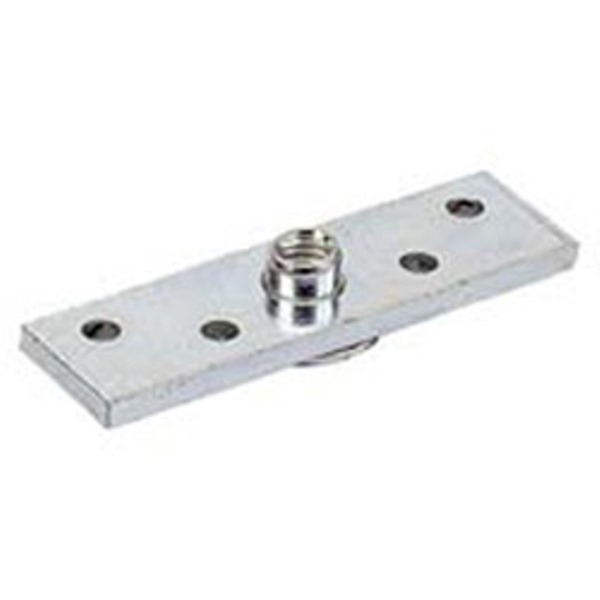

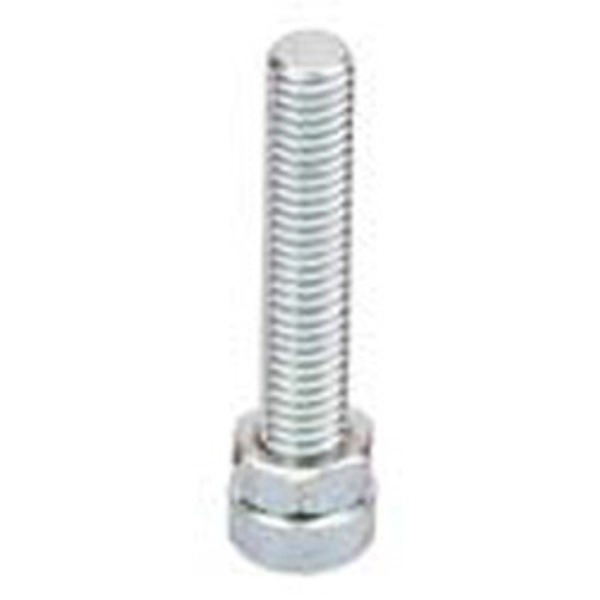

1260 includes: 1 - carrier w/pendant and top plate, 1 - floor pivot bolt assembly, 1 - bottom pivot pin plate, 1 - bottom pivot plate assembly 1 - top pivot clamp assembly 1 - top pivot post assembly and screws

Optional parts  : 1211 Guide Rollers and 122 Guide Channels ( avail 8' & 12' )

Use 1201AL96 (8') OR 1201AL144 (12') Track
