HETTICH 7000 SERIES BYPASSING DOOR - 72-034

CODE: 72-034


Price: $126.28

In stock

150 lb. Capacity, 3/4” Thick By-Pass 2 Door Hardware Kit - Without Track

2 Door Hardware Kit Without Aluminum Track

  • Hettich’s 72-034 Series is a premium line of heavy duty by-pass door sliding hardware

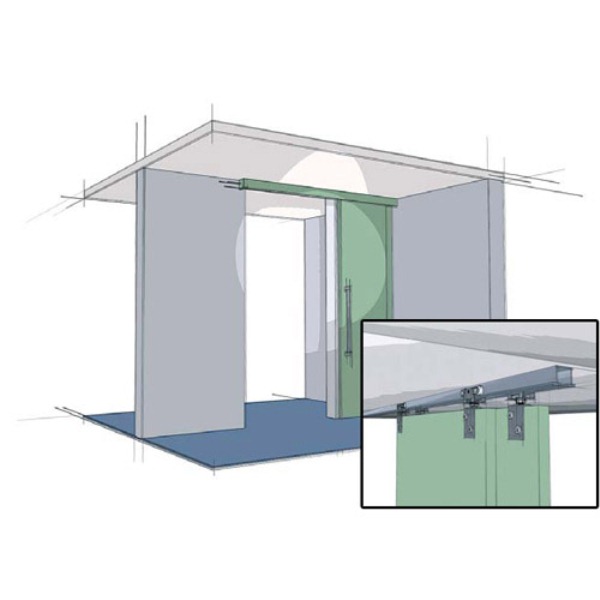

  • Applications include doors between rooms, closet doors, cabinets, storage walls, and partitions
  • For SIDE MOUNT 3/4" thick doors weighing up to 150 lbs with +/-1/8” vertical adjustment and headroom 1-7/8”minimum to 2-1/8” maximum
  • Heavy duty aluminum double I-beam track with jump proof design
  • Pivoting rocker arms ensure track-carrier contact
  • Ball and socket suspension compensates for minor header misalignment
  • Lock nut guarantees permanent positioning
  • Serrations in apron permit vertical adjustment
  • Side mount double ball-bearing wheel carrier guarantees a smooth, quiet and long lasting performance
  • Conforms to ANSI/BHMA standards, Grade 1
  • Available in a complete hardware kits (with 48”, 72” and 96” long tracks) or individual components
  • Made in the USA
  •

  • Kit Includes (Track NOT Included):

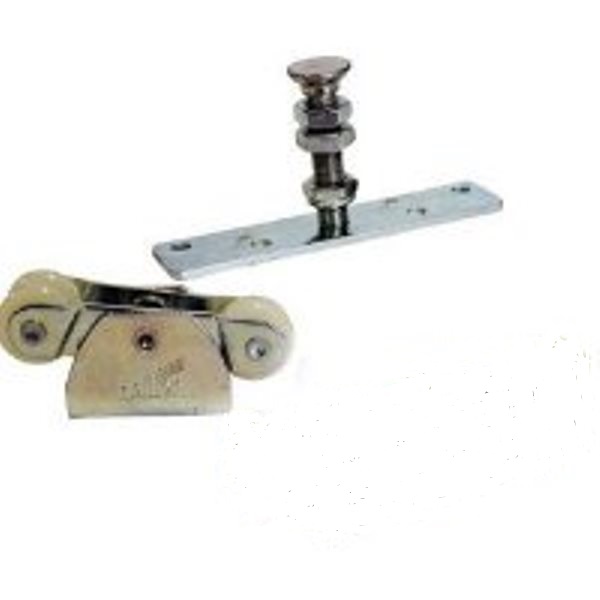

  • (4) Carriers 7000-BB
    (4) Aprons 7034
    (2) Floor Guide 110

    Optional parts : 7014 Stops and 424-XX Finger Pulls.

    7002AL96 & 7002AL144 Tracks Avalable in 8' and 12'. 12 foot tracks can be cut to size for shipping.
