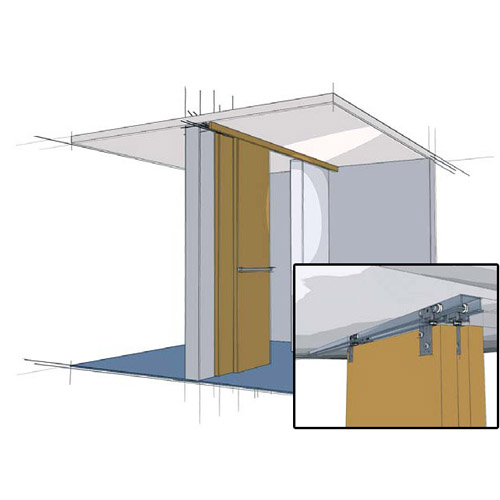

HETTICH 7000 SERIES BY-PASSING DOOR - 72-134

Top Line Grant 72-134 - SIDE MOUNT 1-3/4" door thickness

 Applications include doors between rooms, closet doors,cabinets, storage walls, and partitions.

 • For 1 w" doors weighing up to 150 lbs (68 kg), optional nylon wheel carrier up to 100 lbs (45 kg)

 • High quality precision ball-bearing wheels for quiet and effortless performance

 • Heavy duty aluminum Double I-beam track; jump proof design

 • Pivoting rocker arms ensure track-carrier contact.

 • Ball and socket suspension compensates for minor header misalignment.

 • Lock nut guarantees permanent positioning.

 • Serrations in apron permit vertical adjustment.

 • Conforms to ANSI/BHMA standards, Grade 1

 •Made in USA

 7003AL96 & 7003AL144 Tracks sold separately, available in 8 foot and 12 foot. 12 foot tracks can be cut to size for shipping.

 Optional parts ; 7014 Stops, 1018 Angle Stops and 424_ Finger  pulls ( finger pulls available in Dull Chrome & Dull Brass ).

 Set includes : (4)7000 Carrier, (2) 7034 Aprons, (2) 7138 Aprons, (2) 110 Floor Guide.
